A Graphics Engine Built for Understanding

SeasonEngine is a cross-platform C# graphics engine and application framework for real-time 2D and 3D apps. PBR materials, glTF animation, cascaded shadows and global illumination are the baseline — not an upgrade path.

Get started Download

GitHub

New here? Why this exists · how it compares to MonoGame, Godot and Stride · the two sample applications.

Run the reference application:

Windows

Planned

A next-gen renderer in pure C#. No editor, no fallback paths.

The engine is code-first and editor-free by design. There is no scene editor to learn and no project format to adopt: you declare Sprite2D, Model and InstancedModel in ordinary C#, and AddControl / AddPanel define load order and layering for 2D and 3D alike.

Integration is the product

Bindings stop at the API boundary. PBR, glTF skinning, shadows, DDGI, GTAO, TAA, a dynamic day/night sky, MSDF text and 2D sprites are assembled here so they work together, on four graphics APIs, from one API surface.

One implementation per domain

Animation is glTF, only. Text is MSDF, only. One graphics API per platform — no OpenGL or WebGL fallback. Platform divergence is confined to DeviceServices.

Declarative bulk instancing

Declaring one InstancedModel binds many objects at once, with per-instance skinning and morph targets. Ordinary C#, no second paradigm to adopt, and you never write a Draw call.

Full PBR

Metallic-roughness materials, normal, occlusion and emissive maps, imported straight from glTF.

DDGI global illumination

SDF-voxelised dynamic GI with a probe irradiance atlas and Chebyshev occlusion.

Local AI layer

ONNX and GGML backends behind one API: text, image, video, music, speech and vision.

Four backends

Direct3D 12, Vulkan, Metal and WebGPU, each with its own hand-written shader set.

glTF 2.0 animation

Skinning, morph targets, animation clips and per-instance bone palettes — the one animation format.

Cascaded shadows

Three sun cascades plus a punctual slot in one atlas, with per-cascade light-space culling.

Procedural sky

LUT-based atmospheric scattering, day/night cycle, aerial perspective and procedural clouds.

MSDF text

Resolution-independent glyph atlases, laid out and instanced by the engine on every backend.

Code beside its result

A panel, two models and a quality switch. No draw calls, no render-pass wiring.

using Season.Basic;
using Season.Controls;
using Season.Panels;
using Season.Rendering;

internal class Island : Panel
{
    internal Island()
    {
        AddControl(new Model
        {
            Name = "Assets/island.glb",
            PosY = 0f,
            Width = 60f, Height = 12f, Depth = 60f
        });

        AddControl(new Model
        {
            Name = "Assets/robot.glb",
            Highlight = { Style = HighlightStyle.Wireframe },
            PosX = 6f, PosY = 1f, PosZ = 4f,
            Rotation = MathF.PI / 2f
        });
    }
}

internal class IslandApp : BaseApp
{
    internal IslandApp()
    {
        Title = "Island";
        BasicResolution = new Vector2(1920f, 1080f);
        RenderQuality.DefaultGlobalIllumination = GiMode.Ddgi;
    }

    public override void Create()
    {
        base.Create();
        AddPanel(new Island());
    }
}

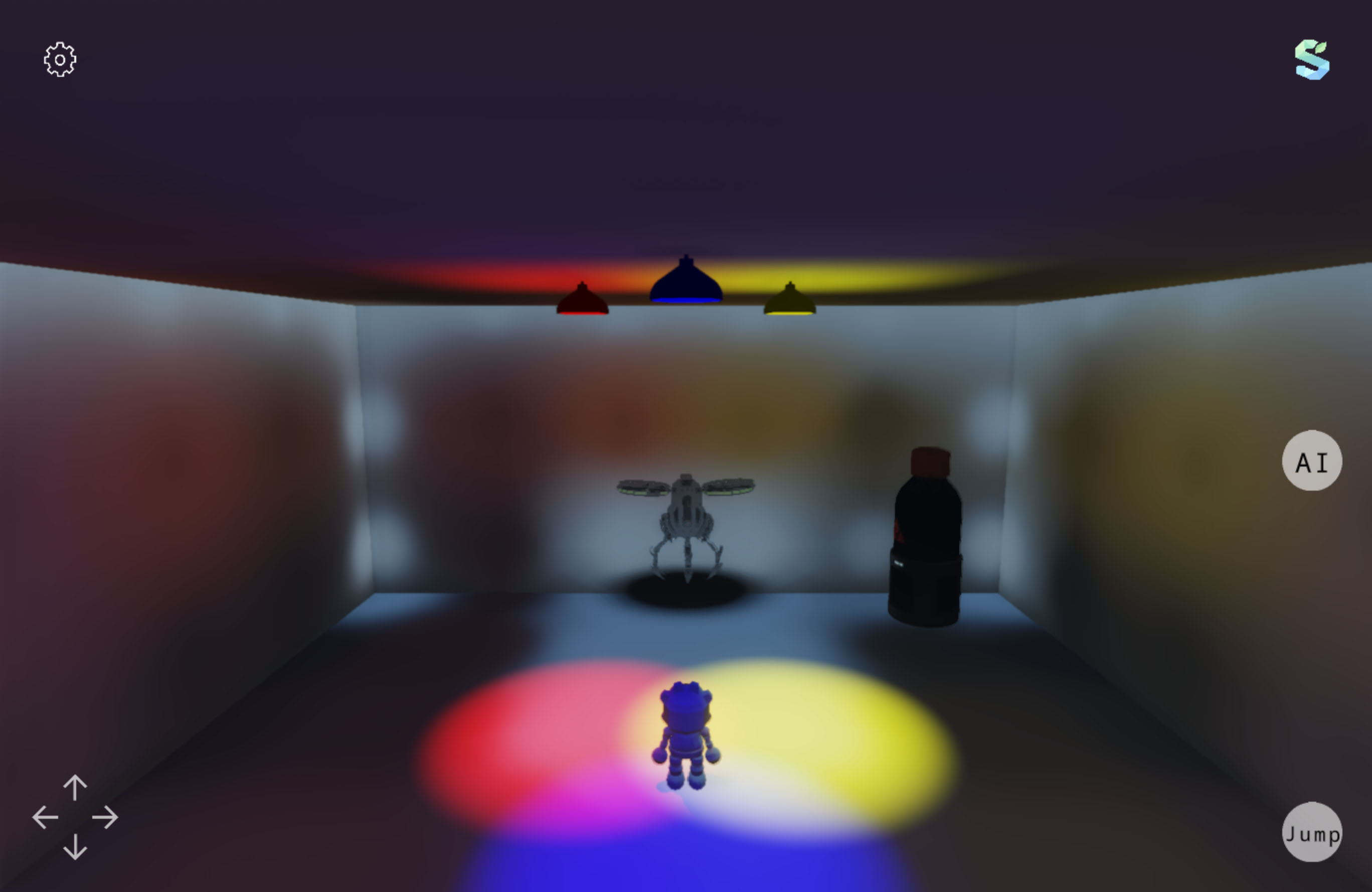

Interior lit by dynamic global illumination — Lighting, shadows and indirect bounce come from the pipeline defaults — the scene code above never mentions them.

Cross-platform by isolation, not abstraction

The app-facing model is shared. Each platform keeps its own renderer and its own shaders, and platform-specific capabilities live behind DeviceServices.

Platforms

Backends

Platform	Target	Entry point	Backend
Windows	`net10.0-windows10.0.19041.0`	`WindowsApp.Run(app)`	Direct3D 12
Linux	`net10.0`	`LinuxApp.Run(app)`	Vulkan
Android	`net10.0-android`	`AndroidApp.Run(app)`	Vulkan
iOS	`net10.0-ios`	`iOSApp.Run(app)`	Metal
Mac Catalyst	`net10.0-maccatalyst`	`MacCatalystApp.Run(app)`	Metal
Web	`net10.0-browser`	`WebApp.Run(app, ...)`	WebGPU path

A fixed pass schedule, not a frame graph

The frame shape is visible in engine code. It gives up some scheduling generality and buys a pipeline you can read, debug and align across four backends.

FrameStart Compute → Shadow → Scene → AfterScene Compute → Post → FinalBlit → Overlay

Compute effects register into the two compute phases and leave no residue when a backend cannot run them, so bloom, GTAO, TAA, DDGI and the sky LUTs extend the pipeline without touching the scene model.

BaseApp
  -> Panel tree
     -> Controls (Sprite2D, Texts, Shape, Mesh3D, Model, InstancedModel, ...)
        -> IGraphics backend
           -> Direct3D 12 / Vulkan / Metal / WebGPU

What is actually implemented

Audited against the source, not against marketing copy. The absent rows are listed for the same reason as the shipped ones.

Capability	Status	Where it lives
Fixed pass schedule with compute phases	Shipped	`Rendering/RenderPass.cs`
Bloom, GTAO, TAA, depth debug views	Shipped	`Rendering/Effects/`
DDGI dynamic global illumination	Shipped	`Effects/Ddgi.cs`
Sky atmosphere, day/night cycle, clouds	Shipped	`Effects/SkyAtmosphere.cs`
Cascaded shadow maps (3 + 1 punctual)	Shipped	`Rendering/CascadedShadow.cs`
GPU instancing with skinning and morph targets	Shipped	`Controls/InstancedModel.cs`
Per-instance picking and highlight modes	Shipped	`Panels/ObjectPicker.cs`
Property editing in the reference app	Partial	fixed fields, no property grid
Scene serialization, save and load	Absent	no scene format yet
Indirect draw, texture compression, occlusion culling	Absent	planned in Track A

Read the full audited baseline and roadmap →

The reference application

Apps/Engine is not a minimal demo. It is the app used to validate the renderer when every system runs at once — and it doubles as the regression target.

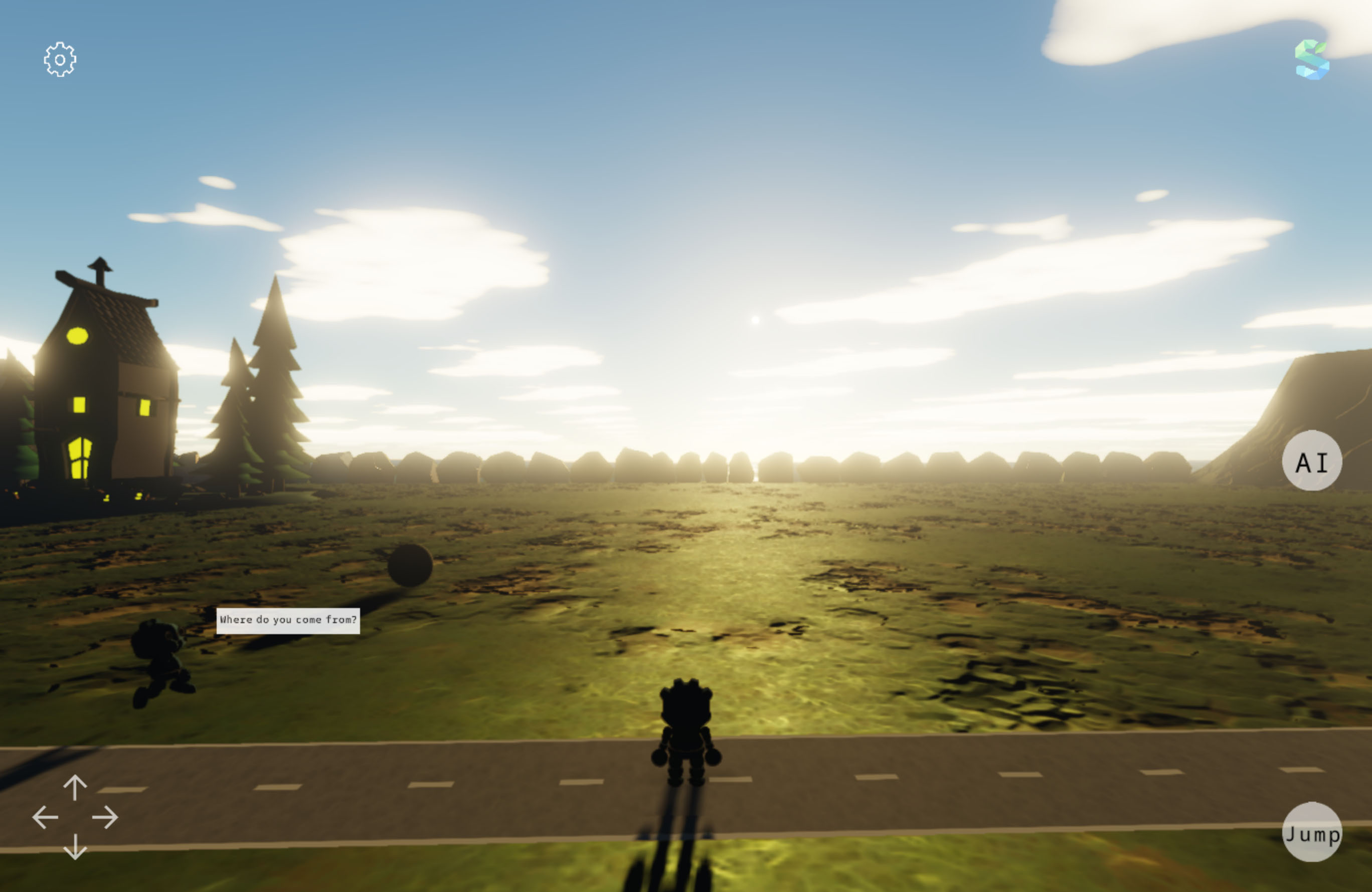

Procedural sky over the island scene — Physically based scattering, not a skybox texture.

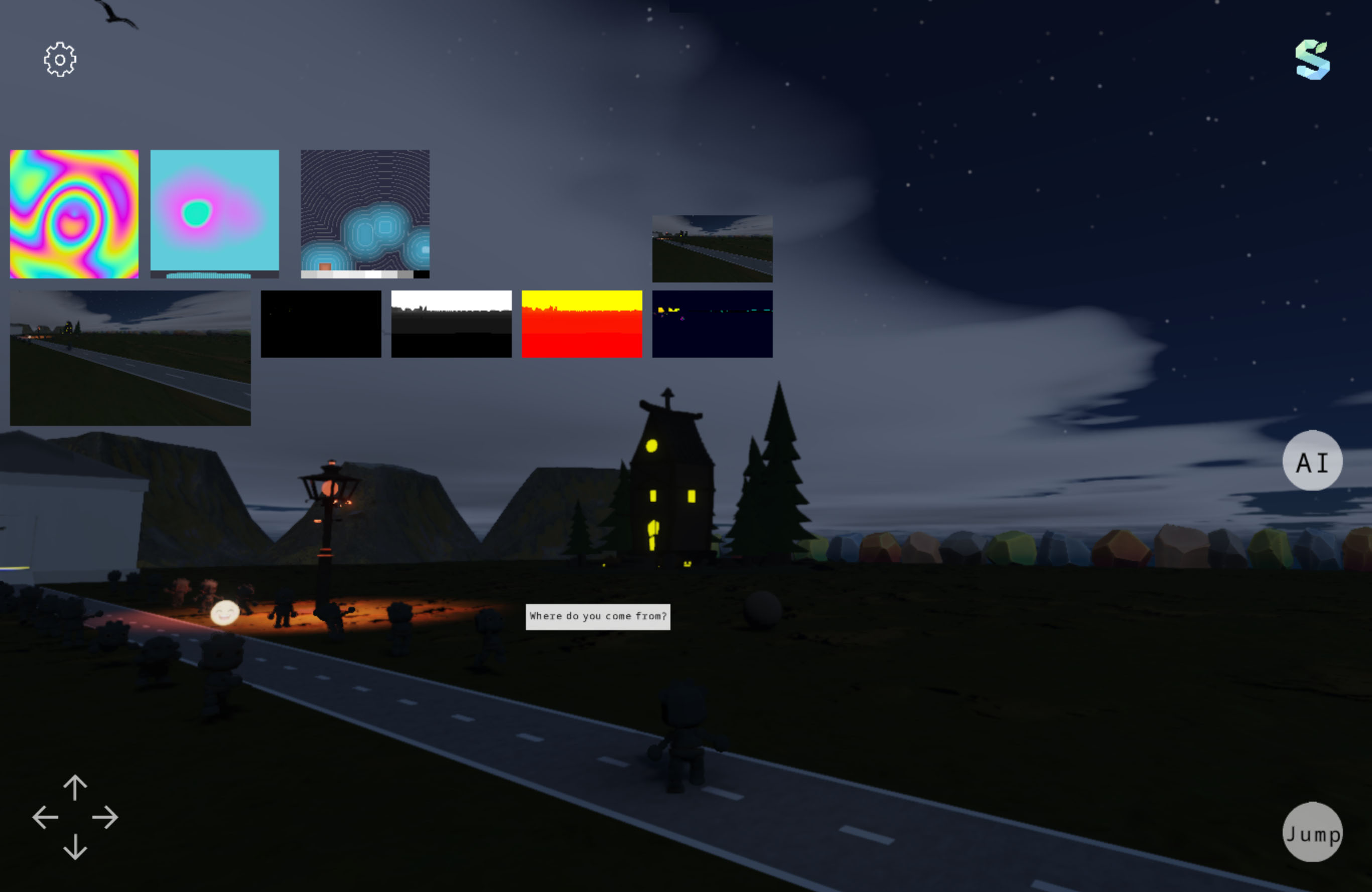

Debug mode showing intermediate render targets — Depth, velocity, AO, GI probes and post stages, live.

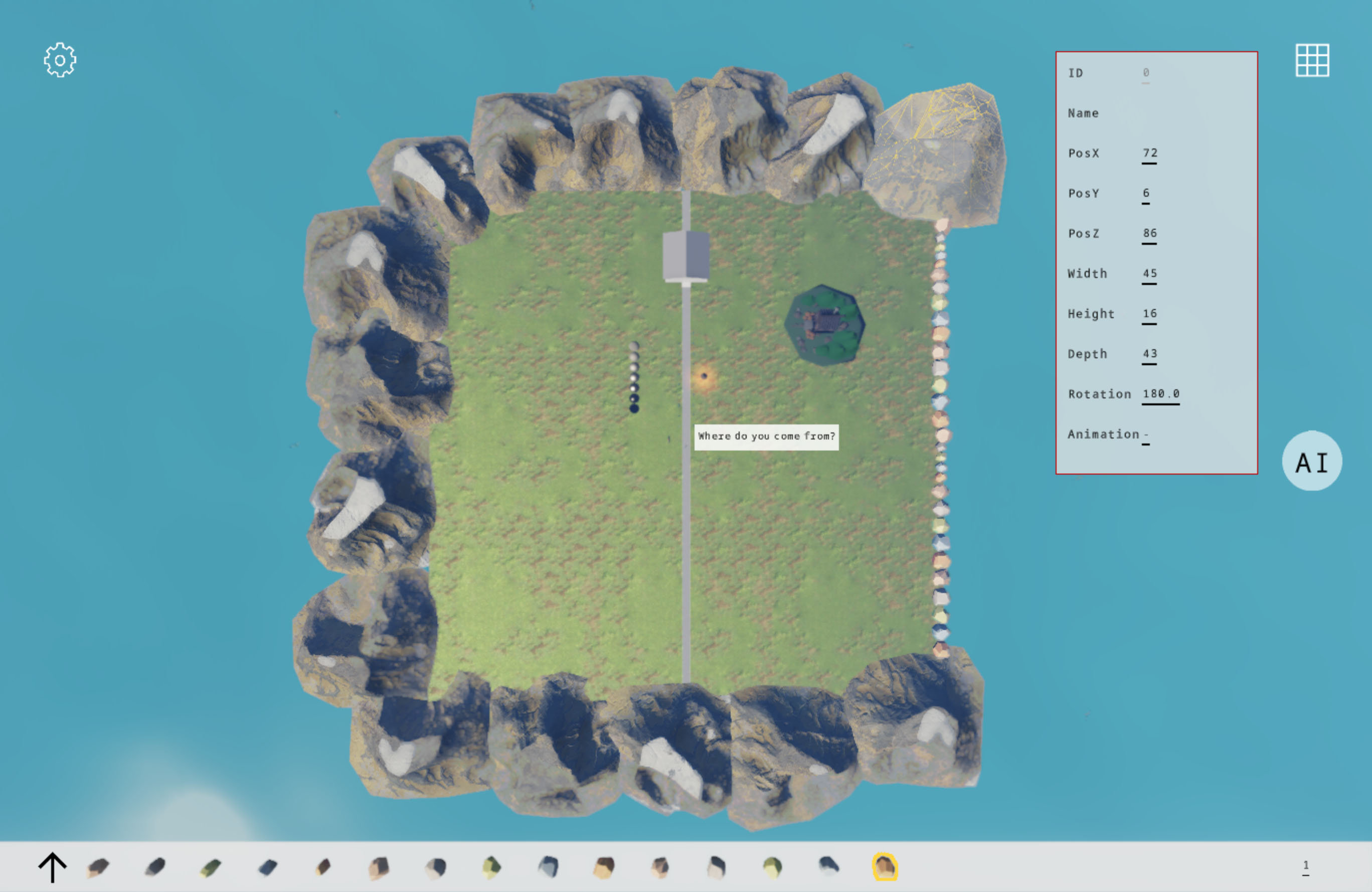

Object picking and highlight in the island scene — Per-instance surface picking with wireframe and outline styles.

The AI layer

Local inference is a separate stack that sits beside the engine, not inside the renderer. Its contribution is not another backend — it is making dependency-heavy local models practical inside a real application: one API over both ONNX Runtime and GGML, version-consistent native runtimes, and packaged CUDA / cuDNN dependencies instead of a manual install guide.

Libraries today

Text and translation, image generation and editing, video, music, text-to-speech with voice cloning, speech-to-text, vision and OCR.

TextTranslateImage VideoMusicTTS STTVision

Backend selection covers CPU, DirectML and CUDA. Model weights are never bundled: each panel links to its source repository.

Where it is going

Generated assets flowing back into the scene as engine resources.
Optional external cloud APIs alongside the local backends.
C# code generation, so an agent can assemble a graphics application from a prompt.

The engine core and the foundational AI libraries are MIT. SeasonAI, the productised application layer, is the commercial part — that split is what funds the open work.

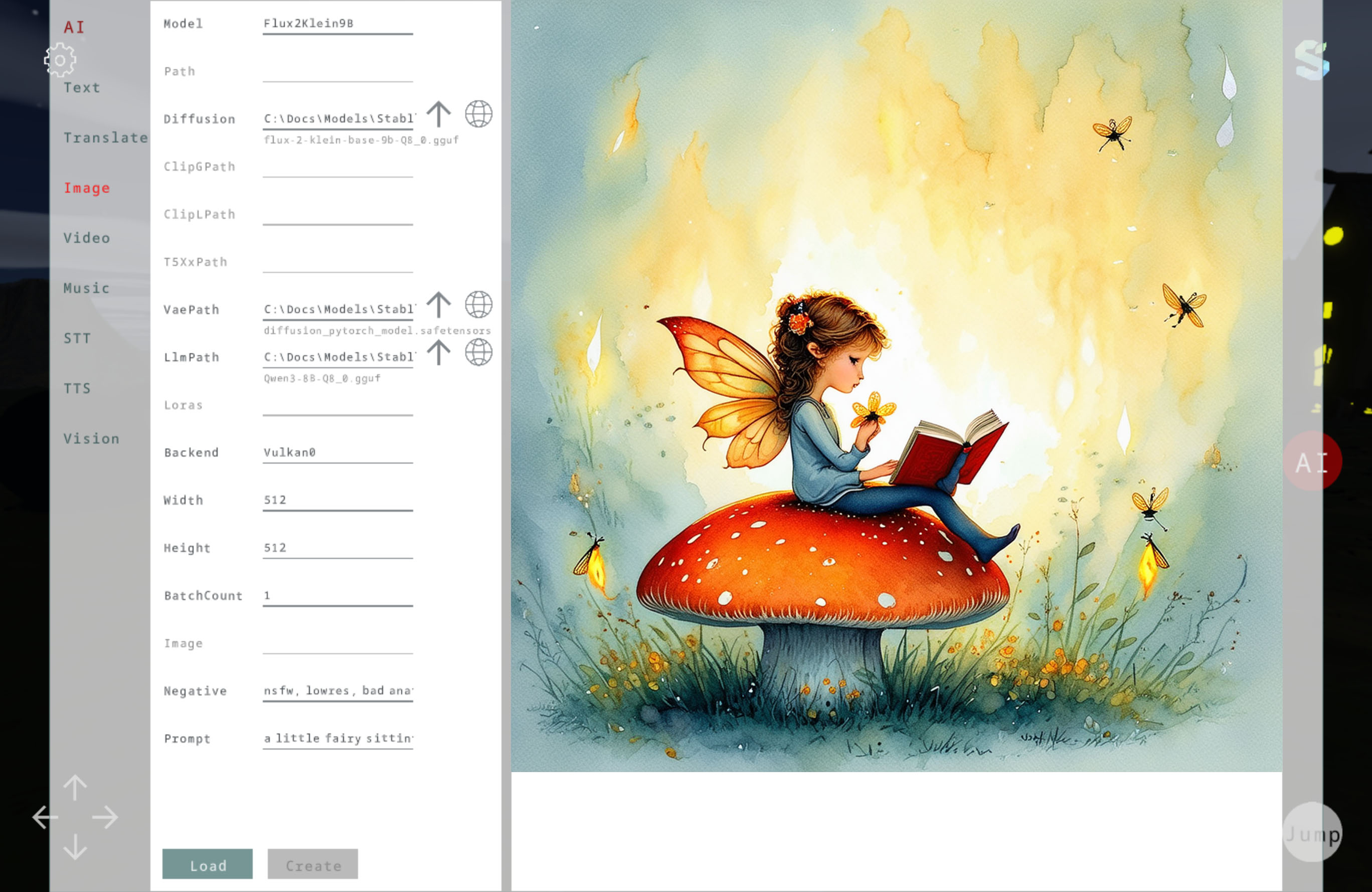

Local image generation inside the reference application — Local image generation running in the same application as the renderer.

The local AI layer in full → — including the runtimes behind each capability, and the gap that still separates a generated image from an engine asset.

Get started

Add the library

dotnet add package SeasonEngine

Or reference the project directly from a clone of the repository.

<ProjectReference Include="..\Season\Season.csproj" />

Run the reference app

git clone https://github.com/SeasonRealms/SeasonEngine.git
cd SeasonEngine
dotnet run --project Apps/Engine/Engine.csproj -f net10.0-windows10.0.19041.0

On Linux use -f net10.0. Requirements and per-platform notes are in the getting started guide.
